Features
Operates on all 16 PMR446 frequencies *
Can utilise all 16 of the PMR446 channels, enabling each team to have their own space to communicate.
Push-to-talk button
Oversized, textured, and centrally located provides easy access for eyes up operation.

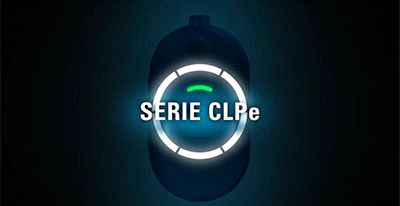

Smart status glow ring
8 colours to indicate active channel, radio transmit & receive, scan, volume level, mute, and battery status.
Voice assisted operation
Announces channel, monitor, scan, and call tones in 10 different languages.
Loud and clear audio
Clear and crisp audio performance in any environment. Adjust between 15 number of volume levels.
Durable Polycarbonate Housing
IP54 and Military Standard 810H rated to protect the radio from shock, vibration, water, dust and temperature extremes.
Durable in-line PTT Earpiece
High-quality audio in a sleek form factor with a reinforced coil and with a twist and lock connector.
Long Lasting Battery
Operates for up to 20 hours to help your teams power through extended shifts.
Privacy Codes
Choose between 219 privacy codes to add a level of privacy to your communications.
Channel Voice Announcements
Custom and pre-defined voice announcements to identify each channel to your team.
Escalate Call
Initiate an important call or alert users on another channel to immediately communicate a message in high-risk situations, keeping your teams and assets safer when an incident occurs.
* Restricted to 8 channels in Russia by law. Please refer to user guide.
Performance Characteristics
-
Coverage area
7,400 m2 / 6 Floors
-
Frequency range
PMR446
-
Power
.5W
-
Standard battery chemistry type
Lithium Ion
-
Battery life (based on a 05 05 90 duty cycle)
Up to 20 hours
-
Repeater capable
No
Physical Characteristics
-
Dimensions H x W x D (with standard battery)
90.0 x 51.0 x 25.0 mm (3.55 x 2.00 x 0.98 inches)
-
Weight (with standard battery)
95g
Radio Features
-
Number of channels
16
-
Channel spacing (kHz)
12.5
-
Channel scan
Yes
-
Digital Private Line
84 std + 84 inverted + 6 custom
-
Private Line
39 std + 6 custom
-
CPS (Customer Programming Software)
Yes
-
Cloning
With cable, With multi-unit charger (MUC), With single-unit charger (SUC) and cable
-
Voice operated transmit (VOX)
Yes
-
Privacy Codes
219
User Environment
-
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G, 810 H
-
Operating temperature
-30ºC to +60ºC (Radio)
-
IP Standards
IP54
Warranty
-
Standard warranty
1 year
