Mimer X-Link Mototrbo
Building a bridge between two radio systems.
Easily bridge an analogue system to a DMR or TETRA system. Bridge TETRA to Airband or two TETRA systems together. The interface will cross connect the audio and trigger PTT based on squelch, PL, USB or PEI information.
Learn MoreThe Mimer X-Link interface cross connects any two radios together building a bridge between two radio systems.
You can easily bridge for example an analogue system to a DMR or TETRA system, you can bridge TETRA to Airband or two TETRA systems together. The interface will cross connect the audio and trigger PTT based on squelch, PL, USB or PEI information, whatever is available from the receiving radio.Â

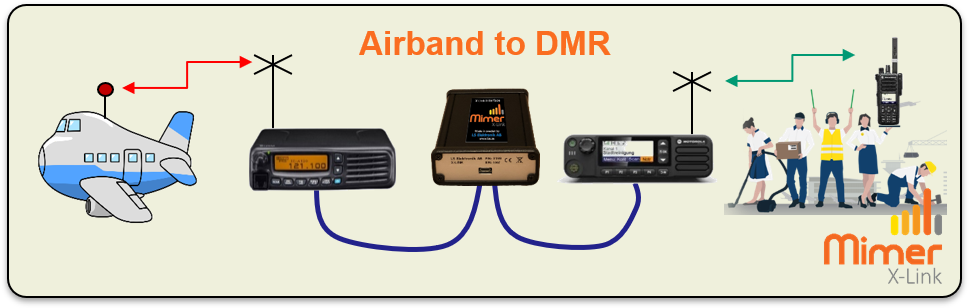

  Bridging Ground to Air at an airport
Bridging DMR and Tetra
Functionality
Receiving on one radio triggers transmission on the other radio. Detection of reception is made through either PEI, PL, Squelch or audio detect, depending on the radio type.
The way to trigger PTT can also be set depending on the other radios capabilities.
There are audio transformers on both audio in and audio out and the levels can be fine tuned to fit any type of radio.
Setup of the interface is made through a small Windows utility, connected through USB.
Additional Resources
Industry
- Agriculture, Airlines and Airports, Border and Coastal Security, Construction, Device and System Management, Electricity, Emergency Medical Service (EMS), Emergency Response, Fire, Forestry, Manufacturing, Maritime Shipping and Seaport Operations, Military and Defense, Mining, National Government Safety & Security, Oil and Gas - Petrochemical, Parcel & Freight Services, Police & Law Enforcement, Prisons & Corrections, Public Transit, Railways and Railroad Operations, Warehouse & Storage, Water
Supported Languages
- Receiving on one radio triggers transmission on the other radio. Detection of reception is made through either PEI, PL, Squelch or audio detect, depending on the radio type.
- The way to trigger PTT can also be set depending on the other radios capabilities.
- There are audio transformers on both audio in and audio out and the levels can be fine tuned to fit any type of radio.
- Setup of the interface is made through a small Windows utility, connected through USB.
- Cross connects any two radios
- Triggers in/out can be set depending on radio type
- Audio levels in/out can be set depending on radio type
- Uses the PEI port on Tetra radios
- Small interface box 130x80x30mm
- Runs on 12VDC just as the radio
- Cable kits available for different radios
- Windows setup software connects through USB
- After setup, it runs by itselfÂ

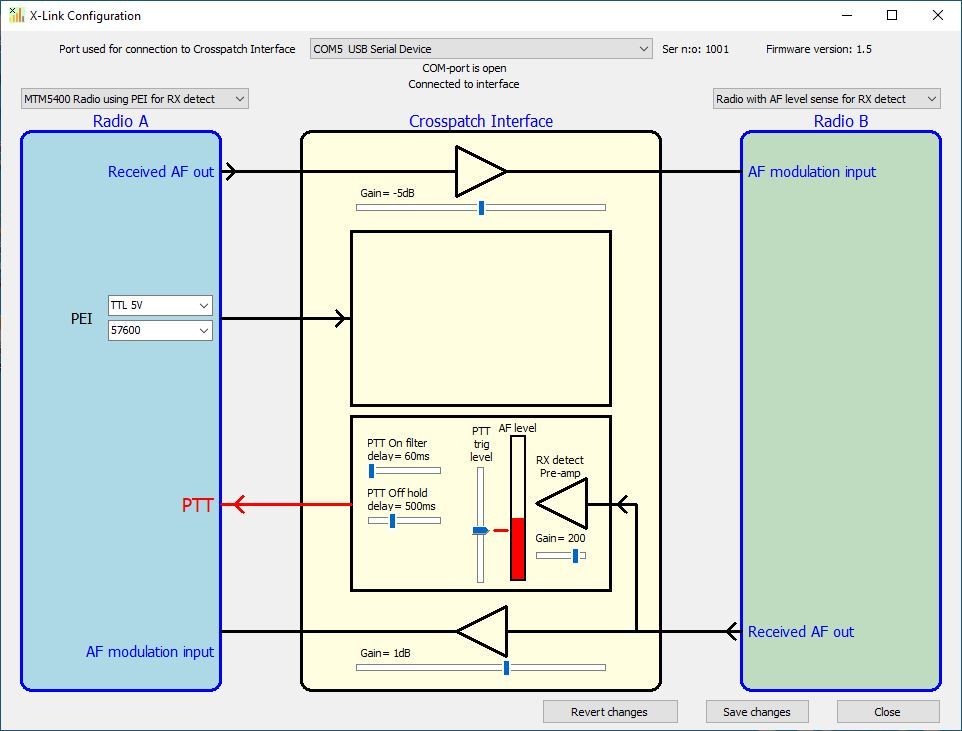

Setup software for the X-Link
Bridge any two radio systems:
- Any type of radio
- Any brand of radio
- Analogue; VHF, UHF, Marine, Airband
- MF/HF
- DMR
- TETRA
- APCO
- IDAS
- Nexedge
- MPT
- Smartnet
- The panel is connected to the audio of each radio and to PTT.
- On TETRA radios the PEI port is used for call setup.
- The infrastructure is not relevant. The panel can be used with any type of network.

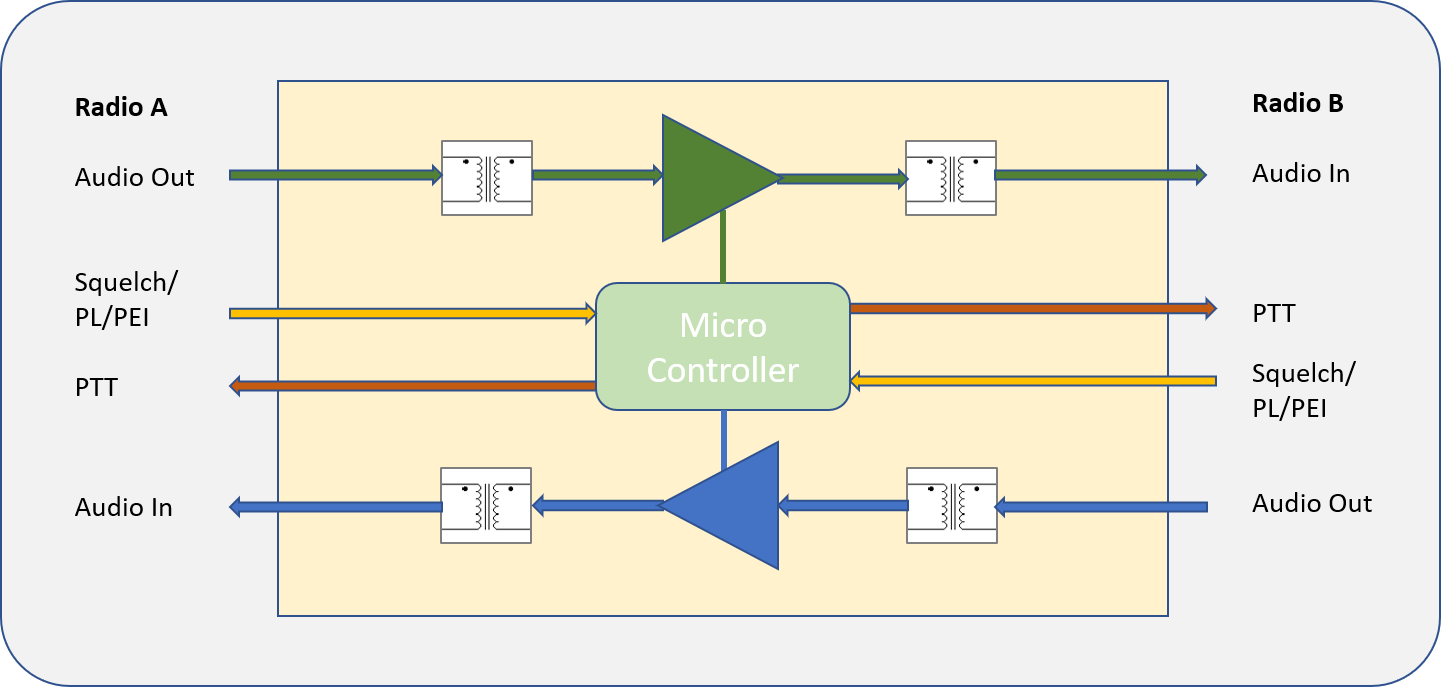

Simplified drawing of the interface
