Vehicle Alarm and Monitoring System

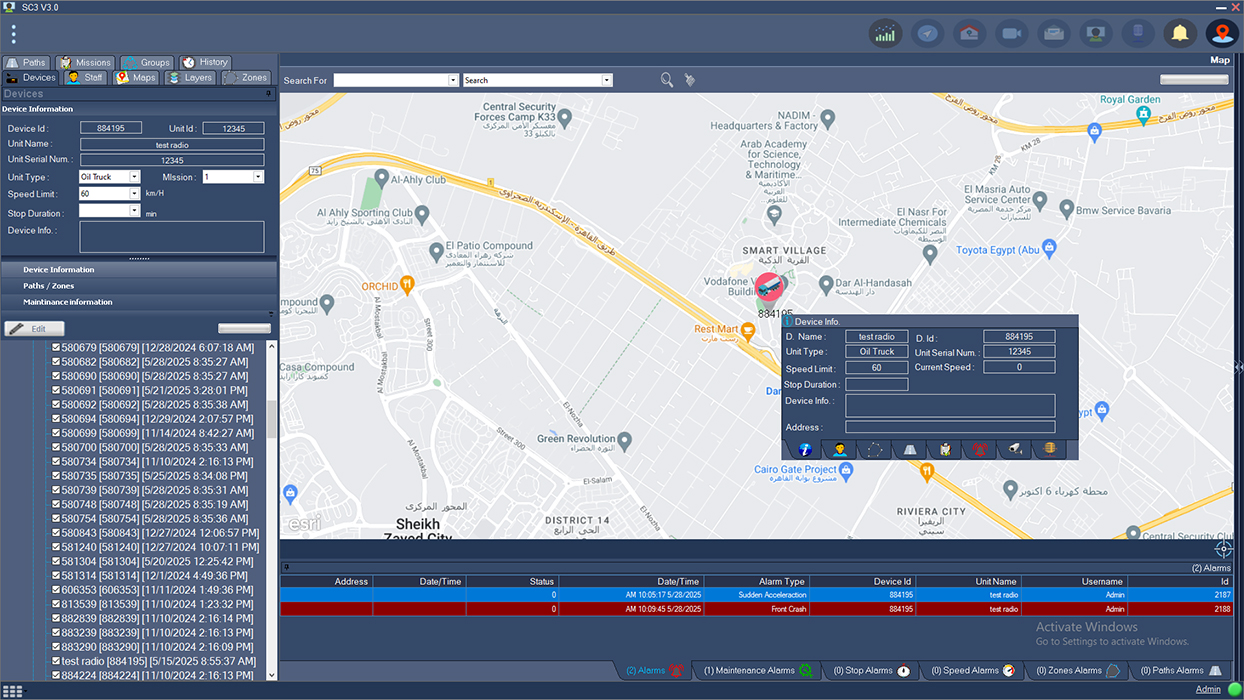

Comprehensive vehicle monitoring immediately visible.

Comprehensive vehicle monitoring immediately visible.

Capture critical data and instantly relay alarms to the central application.

Learn More

Description

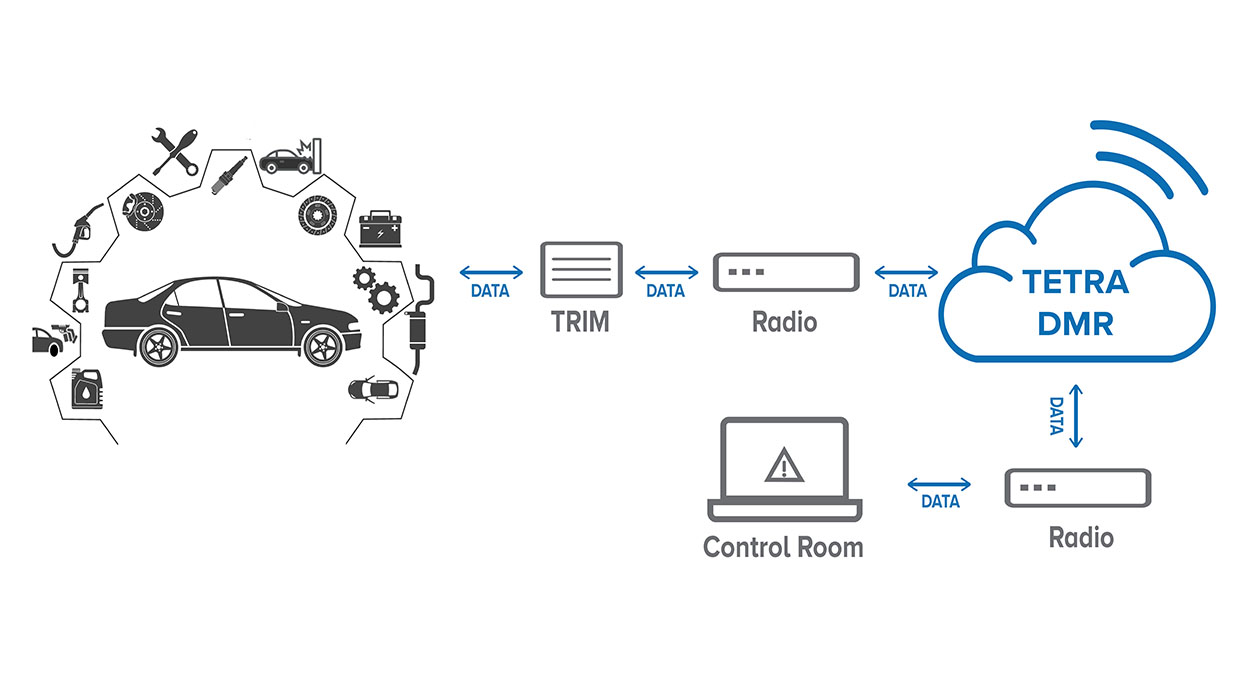

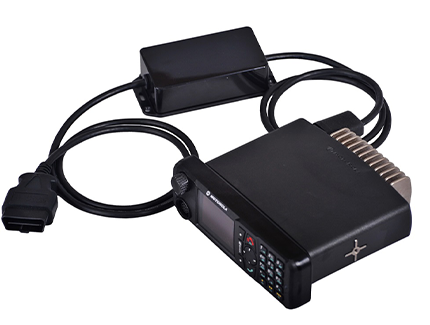

The Vehicle Alarm and Monitoring System utilises both internal and external sensors (such as crash, magnetic door, and emergency on/off switches) to provide comprehensive vehicle oversight. It offers protection against theft and detects unauthorised entry or movement. By integrating external sensors and the vehicle's OBDII bus via a compact module linked to a two-way radio (TETRA, DMR), users can achieve complete vehicle monitoring. All alerts and location information are presented through a dedicated monitoring application.

Benefits
Features
System Requirements

Enhanced Vehicle Security: Protect your vehicles from theft and unauthorised use with real-time alarm notifications.

Instant Alarm Notifications: Receive immediate alerts via two-way radio to a central application when any security breach or sensor anomaly occurs.

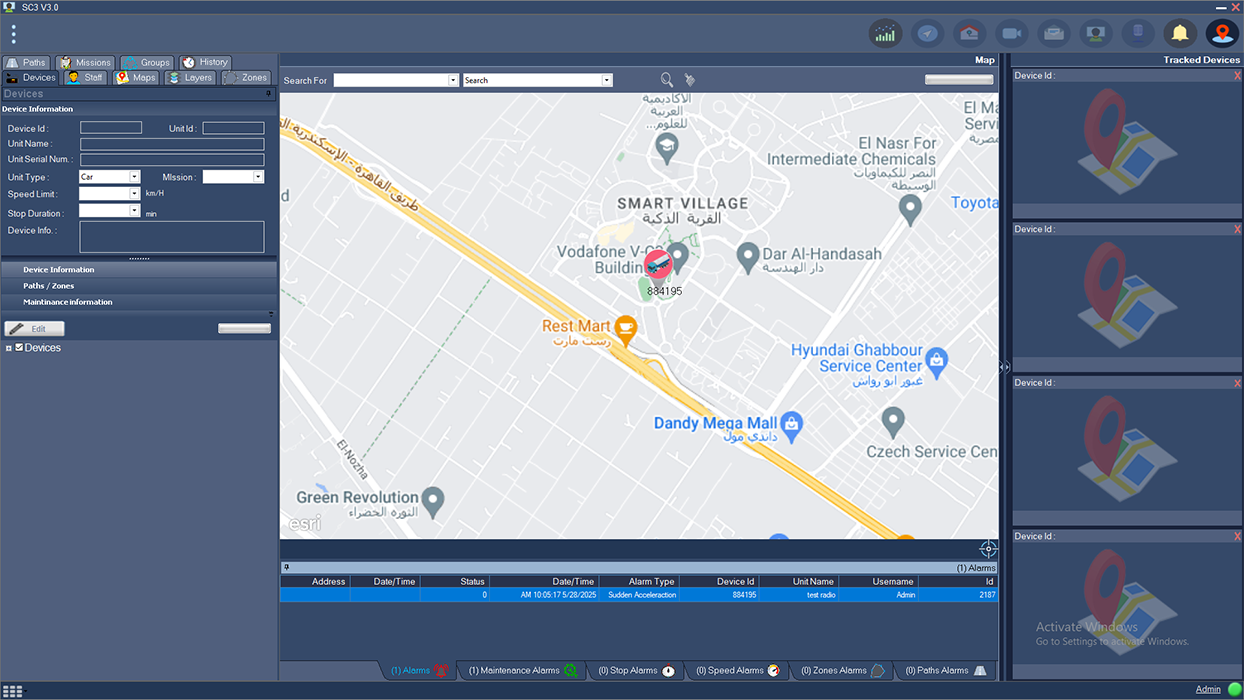

Real-time Location Tracking: The intuitive GIS map displays the precise location of your vehicles at all times.

Proactive Vehicle Management: Monitor live sensor readings (e.g., door status, motion) to anticipate potential issues and take timely action.

Comprehensive Vehicle Oversight: Gain a complete understanding of your vehicle's status and location from a single, user-friendly application.

Faster Response Times: Quickly identify the location of alarms on the GIS map, enabling swift and efficient response.

Improved Operational Efficiency: Optimise vehicle management through real-time data and location awareness.

Reduced Risk of Loss or Damage: Early detection of unauthorised activity or potential problems minimises the risk of theft or damage to your vehicles.

Increased Peace of Mind: Know the status and security of your vehicle fleet at all times, providing greater peace of mind.

  • A large number of separate inputs can be programmed as Normally Open or Normally Closed and can be sent to separate destinations.
  •  Alarm sending will be stopped as soon as acknowledgement is received.
  • Monitor and control from a control room computer.
  • Monitor and control from radios on site (in the field).
  • Provides power redundancy using a backup battery in case of AC failure.
  • Over-the-Air configuration
  • Alarms can be sent to five destinations
  • Sends alarms including the radio's current TETRA/DMR GPS location
  • Connects up to five dry contact alarms
  • Monitors all vehicle sensors using the OBD interface

Support for all legislated OBD-II protocols:

  • SAE J1850 VPW
  • SAE J1850 PWM
  • ISO 9141-2
  • ISO 14230-4
  • ISO 15765-4 (CAN)

Support for non-legislated OBD protocols:

  • ISO 15765
  • ISO 11898 (raw CAN)
  • Compatible with Motorola TETRA / DMR radios 5000 series.
  • Powered by 12 V DC through connected TETRA / DMR Radios.
  • Operation in harsh environments and indoor use.
  • The Remote Terminal Unit is compatible with all TETRA and Mototrbo radios.
  • Programmed destinations can be configured remotely Over-the-Air (OTA).

Computer Hardware/ Operating Systems

  • Win 11, Intel core I9, 16G Ram, 1Tb SSD

IP Technology

  • For TETRA Network: Requires an IP connection to the SDR or a data cable to a TETRA mobile radio.
  • For DMR: Requires an IP connection to a repeater or a data cable to a DMR mobile radio.

System Architecture

  • DIMETRA X CORE, DIMETRA Express, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus, Capacity Max.
