Features
Vibrant color display
A full-graphic, backlit display uses brightness adjustment to provide a crisp and clear image, while an intuitive navigation menu helps you quickly and easily locate all radio features.
Slim rugged design
Compact and IP54 rated. A durable design meets U.S. Military 810G standards for shock, vibration, water, dust and temperature extremes - so it will operate in the harshest working conditions.
Prominent functional keys
Programmable button can be used to quickly access features including Call All / Page All – connecting you to all radios immediately without searching through your channel list. Private Reply – a private call feature – allows you to talk privately to the person currently talking to a group after the group radio transmission is over, freeing the radio channel from unnecessary back and forward chatter.
Interface free, private communications
DTR720 radios give you peace of mind and keep your team focused on the task at hand, by making your communications more private.
To take advantage of Private Communications, you can quickly set up your radio fleet with a unique Radio Profile ID Number. By choosing from 10,000 available codes, you can assure privacy from other neighboring radios.
Leverage Frequency Hopping Spread Spectrum (FHSS) technology for more reliable and private communication when compared to standard analog radios.
Flexible call options
Digital one-to-one private calling allows private communications with a specific user. The recipient receives an alert - either audible or vibrating - and their radio displays the caller’s ID.
Digital one-to-many group calling enables public group calls. All other DTR Series radios on the same group ID and channel can hear communications.
Wide area coverage
The DTR720 digital radio works wherever people do. Reporting from the production line or the principal’s office, they’ll enjoy expanded in-building coverage – up 350,000 sq. ft (or 30 floors indoors) with the standard whip antenna.
Loud and clear audio
Digital audio quality stays loud and clear – up to the edge of coverage – without static or dead zones.
Performance Characteristics
-
Coverage area
350k sq ft 30 floors1
-
Battery life (based on a 5 5 90 duty cycle)
16.5 hrs2
1Coverage depends on terrain and environmental conditions.
2Typical battery life, 5/5/90 profile at maximum transmitter power. Actual observed runtimes may vary.
Frequency band
FHSS ISM 900 MHz
902-907 | 915-928 | 916-928 | 920.5-928 MHz
* The frequency range varies by country. Please contact your Motorola representative
Physical Characteristics
-
Dimensions H x W x D (with standard battery)
5.06” H x 2.2” W x 1.06” D
(128.5mm H x 56mm W x 27mm D) -
Weight (with standard battery)
7.87oz. (223 g)
-
Keypad
Limited
Display
Full-graphic, color
Radio Features
-
Number of channels
50 (up to 200 contacts)
-
VibraCall
Yes
-
Front panel programmable
Yes
Technology
-
Digital technology
Yes
User Environment
-
IP Standards
IP54
-
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
-
FCC license-free
Yes
Antimicrobial
Yes

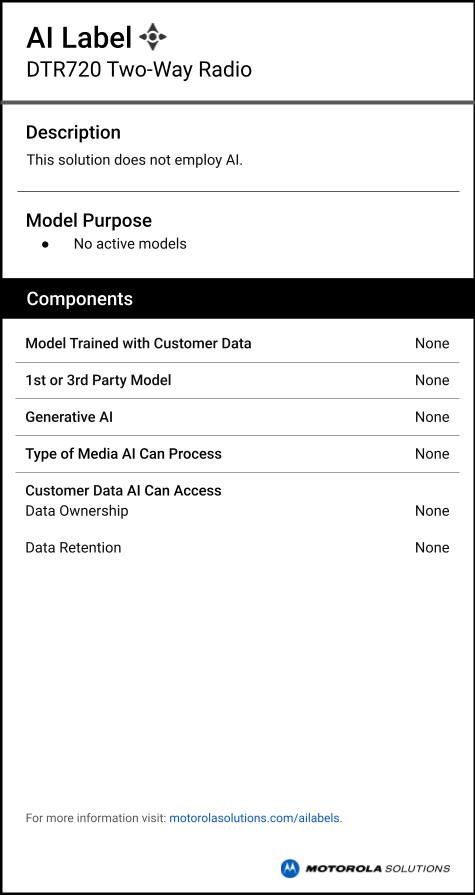

AI Label
DTR720 AI label - View label
AI labels provide information on if and how DTR720 leverages artificial intelligence. Learn more
