Monivox Data Interface

MoniVox data interface

Designed an interface for data transmission using the mototrbo digital two-way radio system. Take advantage of the mototrbo dmr digital technology To transfer data from remote locations. Solutions with simple integration And without monthly data packet cost.

Description

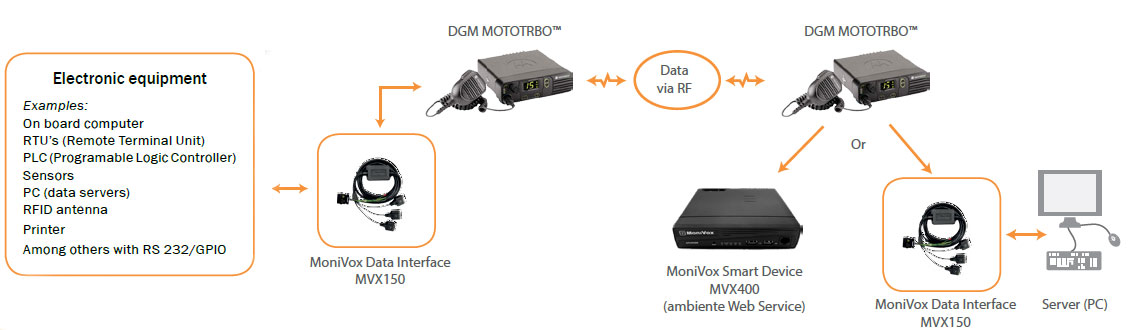

The MoniVox® Data Interface cable (MVX150) allows capturing and transferring raw data between electronic devices (equipped with RS232 and GPIO) and MOTOTRBO mobile digital radios or base stations.

This interface allows the MOTOTRBO radio to acts as a modem, transferring data from one radio to another. Data can be stored in a PC or a data center, and could also be integrated with other custom MoniVox® applications.

• Data transfer even from remote areas.

• Interaction with MOTOTRBO radio network.

• Uses the MOTOTRBO radio as a modem.

• No data transfer monthly cost.

Connections:

Communication Ports IN/OUT:

• 02 (two) RS232

• 04 (four) GPIO programmable
(IN – digital or analog, OUT – digital).

Storage memory:
2Mb

Microprocessor:
AVR32®

Operational System:
Proprietary MoniVox.

Operating Temperature:
0º to 60ºC

Power input:
Via MOTOTRBO radio (8 ~ 15VDC).

Speed:
4800 bps

• Motorola MOTOTRBO DGM series.

• MoniVox Data Transfer (MVX150).
