K-TERM42

Option board for DP/DM3XXX radios - select 5, man down and inhouse localisation

With the K-TERM42, MOTOTRBO radio can be used in existing systems. It may be used to gradually replace analogue radios in existing systems and help migrating from analogue systems to digital systems.

Description

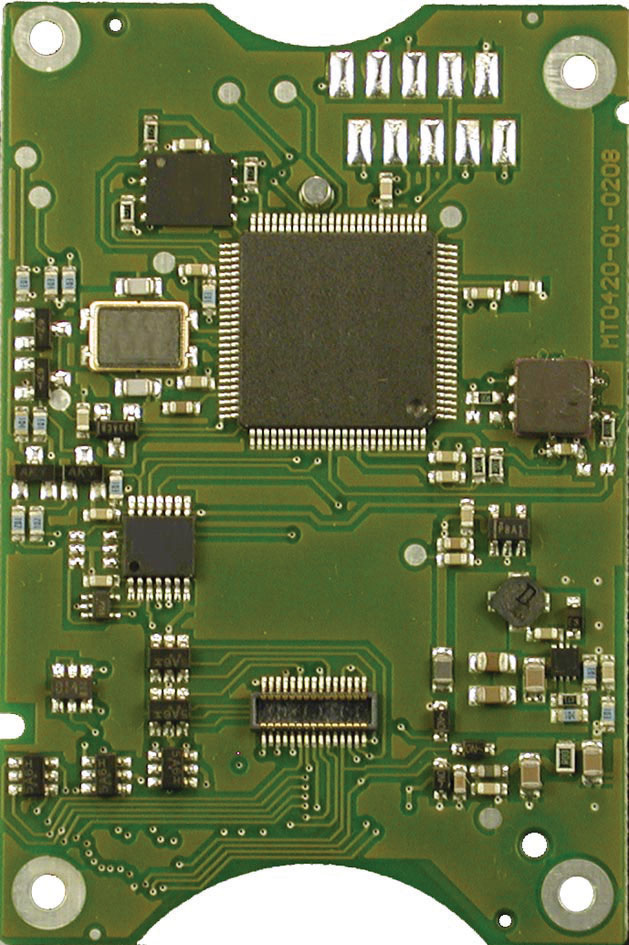

The K-TERM42 is an option board that can be fitted on the portable radios DP340x and DP360x and the mobile radios DM340x and DM360x. On analogue channels, the K-TERM42 is a select 5 decoding and encoding module with a Man Down alarm functionality. The K-TERM42 select 5 module can be used in all analogue radio systems with the select 5 functionality.

On digital channels, both the Man Down and lone worker functionality can be used for in-house localisation. The signals from beacons (K-TERM70) are detected and the radio position is sent to the base.

Programming the functionality is easy thanks to the K-TERM CPS program. Once the option board is installed in the radio and the radio attached to the PC with the Motorola USB cable, the CPS program allows users to set all parameters and save them in the option board. When a new option board firmware is released, it can be uploaded to the option board using the same CPS programme.

Supported Languages

• Lone Worker.

• Man Down.

• In-house localisation.

• Universal Option Board.

• 5-Tone Signaling.

• Console for analogue mode.

• All buttons programmable for encoding sequences.

• Customised options.

• Tilt switch for Man Down (optional).

• Alarm notifications.

Radio Hardware / Releases Compatibility
DP340x / DP360x and DM340x / DM360x.

Computer Hardware / Operating Systems
Windows 2000 / XP / VISTA with installed Motorola USB drivers for connecting the DMR radios.

Interfaces
USB programming cable from Motorola.

Other Requirements
After installing the option board in the radio, the Motorola dealer must be equipped with the tools to restore the waterproofing of the radio. The necessary tools and information are available from Motorola.
